COMBO 202 series (20~30HP Series)
Newly upgraded COMBO 202 series are the most efficient and user-friendly high pressure derusting system for the condition of small water flow allowed (ex, onboard maintenance by crew). COMBO 202 series are made of more durable components (long-life valves, packings, boost pump & etc…) and life time of pump parts are much more extended than the previous version.

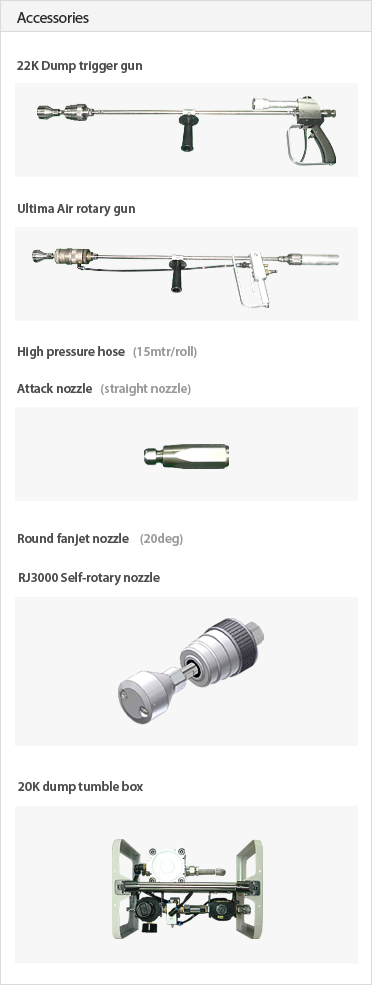

Various accessories & materials for easiest & better application are also available.
Standard type
MJ20-14KEMC
HJ30-22KEMC
Vertical type
MJ20-14KEV
HJ30-22KEV
Explosion Proof type
EXP20-14KEMC
EXP30-22KEMC
Technical data (Power rating 20HP)
Standard type : MJ20-14KEMC
| Working pressure | 1100 bar | Dimensions L x W x H | 1.2 * 0.7 * 1.2m |
| Flow rate (60Hz) | 8.0 ltr/min | Weight | 500 kg |
| Max. water inlet temp. | 40°C | Rotation speed (60Hz) | 560 |
| Voltage | 3~440/60Hz/27A | IP protection | 54 |
| Power rating | 15 kW | Water inlet connection | 16mm male |
Vertical type : MJ20-14KEV
| Working pressure | 1100 bar | Dimensions L x W x H | 0.95 * 0.55 * 1.4m |
| Flow rate (60Hz) | 8.0 ltr/min | Weight | 486 kg |
| Max. water inlet temp. | 40°C | Rotation speed (60Hz) | 560 |
| Voltage | 3~440/60Hz/27A | IP protection | 54 |
| Power rating | 15 kW | Water inlet connection | 16mm male |
Explosion Proof type : EXP20-14KEMC
| Working pressure | 1100 bar | Dimensions L x W x H | 1.25 * 0.88 * 1.27m |
| Flow rate (60Hz) | 8.0 ltr/min | Weight | 630 kg |
| Max. water inlet temp. | 40°C | Rotation speed (60Hz) | 560 |
| Voltage | 3~440/60Hz/27A | EP grade | Ex d IIB T4 |
| Power rating | 15 kW | Water inlet connection | 16mm male |
Technical data (Power rating 30HP)
Standard type : HJ30-22KEMC
| Working pressure | 1500 bar | Dimensions L x W x H | 1.2 * 0.7 * 1.2m |
| Flow rate (60Hz) | 8.0 ltr/min | Weight | 540 kg |
| Max. water inlet temp. | 40°C | Rotation speed (60Hz) | 560 |
| Voltage | 3~440/60Hz/32A | IP protection | 54 |
| Power rating | 22 kW | Water inlet connection | 16mm male |
Vertical type : HJ30-22KEV
| Working pressure | 1500 bar | Dimensions L x W x H | 0.95 * 0.55 * 1.4m |
| Flow rate (60Hz) | 8.0 ltr/min | Weight | 526 kg |
| Max. water inlet temp. | 40°C | Rotation speed (60Hz) | 560 |
| Voltage | 3~440/60Hz/32A | IP protection | 54 |
| Power rating | 22 kW | Water inlet connection | 16mm male |
Explosion Proof type : EXP30-22KEMC
| Working pressure | 1500 bar | Dimensions L x W x H | 1.25 * 0.88 * 1.27m |
| Flow rate (60Hz) | 8.0 ltr/min | Weight | 670 kg |
| Max. water inlet temp. | 40°C | Rotation speed (60Hz) | 560 |
| Voltage | 3~440/60Hz/32A | EP grade | Ex d IIB T4 |
| Power rating | 22 kW | Water inlet connection | 16mm male |
Standard Features
- Stainless steel control panel cabinet and robust frame ensure long lifespan
- Mobile casters unit reduces time to prepare cleaning.
- Small and compact – easily fixed to working place
- Dual filtering – 100mesh strainer + 5micron filter
- Stainless steel water tank and pressure switch
- Premium feed pump (Stainless steel wetted parts)
- Rigid style over-pressure Relief Valve
- Safety rupture disc assy
- 3 ceramic plungers heavy duty pump for long service life and intensive applications over 8 hours per day
- Stainless steel Head and Pressure parts
- Built-in cooler plate for steady performance
- 8inch large wheel with stainless steel caster frame
- All controls in one place for easy usage
- High level of serviceability
Derusting grade comparision
DUMP GUN WITH RJ3000
AT 1,000 BAR
ULTIMA AIR ROTARY GUN
AT 1,000 BAR
ULTIMA AIR ROTARY GUN
AT 1,400 BAR
T.S.T STAGE SYSTEM (TOP SIDE TANK)
